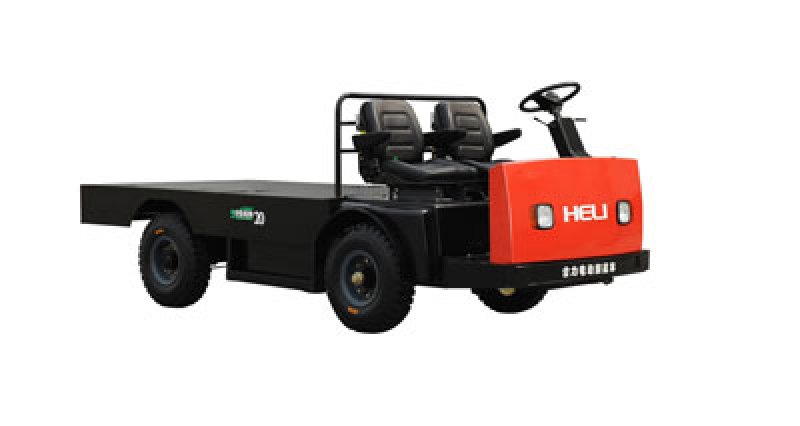

● Compact layout, provides good appearance. ● Low exhausting ,high working efficiency. ● 1-2t AC electric fixed flat truck, adopt circle ball steering gear structure, has high efficiency, prolong the using life. 2-5t AC electric fixed flat truck , steering system adopt hydraulic power ,reduce operating intension. ● Configuration of the cab, platform protection.
| Model | unit | BD10-JB1 | BD20-JA1 | BD20-JB1 | BD40-JA1 | BD50-JA1 |
| Driving mode | Seated | Seated | Seated | Seated | Seated | |
| Travel speed, with/without load | km/h | 8/10 | 12/16 | 12/16 | 12/15 | 12/15 |
| Turning mode | Mechanical | Electric | Mechanical | Electric | Electric | |
| Grade ability with load | %*m | 10*20 | 8*20 | 6*20 | 5*20 | 4*20 |
| Turning radius | mm | 2800 | 2800 | 2800 | 2850 | 3250 |
| Battery(Standard) | V/Ah | 24/280 | 48/280 | 48/280 | 48/350 | 48/450 |
| Total weight(with battery) | kg | 2600 | 2690 | 2800 | 3400 | 3810 |
